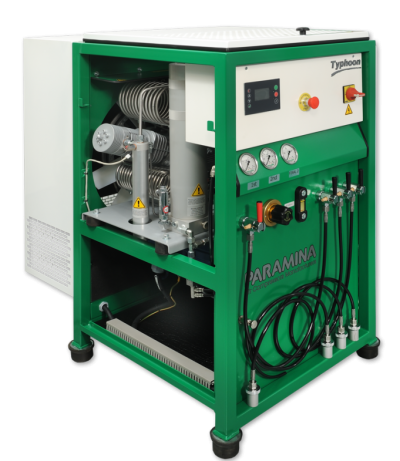

Silent

Silent

Why Typhoon Electric

TYPHOON Electric series, 3-staged, air-cooled, high pressure piston compressor, comprising of 8 basic models, with very low turning speed and pure breathing air according to EN 12021, making it a perfect solution for any breathing air, paintball or industrial application; i.e. fire rescue teams, military units, diving shops, paintball clubs and others.

 The series consists of four versions:

  • Open Framed Portable
  • Classic Stationary
  • Silent – With soundproof insulation enabling it to operate in areas where the noise level is of issue. Includes digital control panel driving, controlling, protecting and ensuring the safe operation of the compressor.
  • Economy Versions-Without automations. Models: Open 13ES ,Open 15ES ,Silent15ES ,Silent 18ES.
silent

silent

Why Typhoon Electric

TYPHOON Electric series, 3-staged, air-cooled, high pressure piston compressor, comprising of 8 basic models, with very low turning speed and pure breathing air according to EN 12021, making it a perfect solution for any breathing air, paintball or industrial application; i.e. fire rescue teams, military units, diving shops, paintball clubs and others.

 The series consists of four versions:

  • Open Framed Portable
  • Classic Stationary
  • Silent – With soundproof insulation enabling it to operate in areas where the noise level is of issue. Includes digital control panel driving, controlling, protecting and ensuring the safe operation of the compressor.
  • Economy Versions-Without automations. Models: Open 13ES ,Open 15ES ,Silent15ES ,Silent 18ES.
Open E
Open E

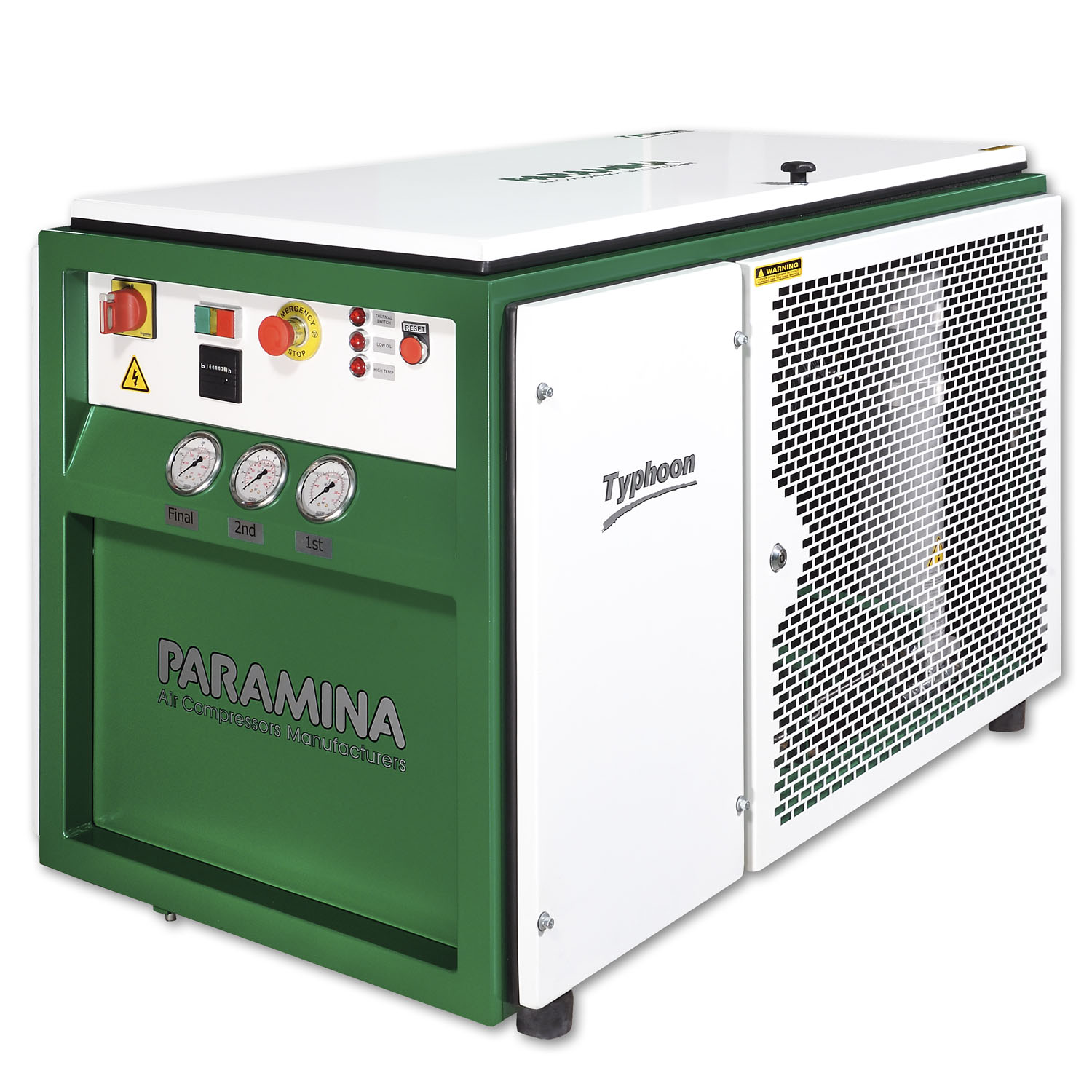

Classic
Classic

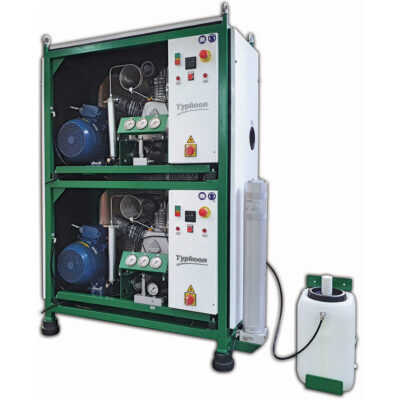

Open Twin
Open Twin

“All basic Typhoon Electric versions provide automatic stop & automatic condensate drain facility as standard equipment.”

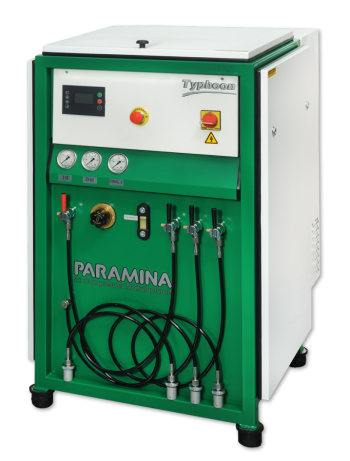

Silent

Silent

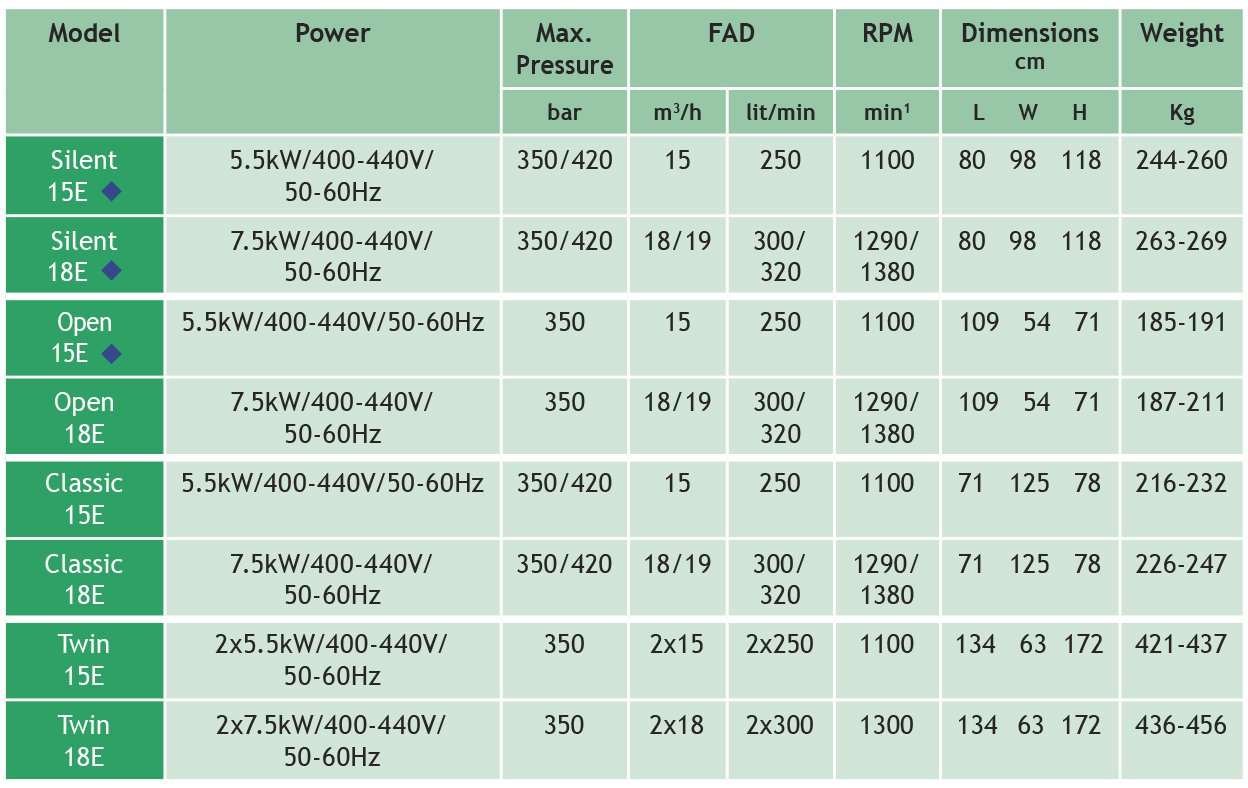

Technical Data

● Oil capacity: 2.2 lit special synthetic compressor oil. ● Permissible ambient temperature:+50C to +450C ● Noise level: Silent 15E - 69 dB(A) @1m, Silent 18E - 70 dB(A) @1m. ◆ NEW Economy Versions: Open 13ES, Open 15ES = Manual Stop, Manual Condensate Drains, 1 Filling Hose  Silent 15ES, Silent 18ES = Without digital Controller, With Auto Stop, Auto Condensate Drains, 2 Filling
● Oil capacity: 2.2 lit special synthetic compressor oil.
● Permissible ambient temperature:+50C to +450C
● Noise level: Silent 15E – 69 dB(A) @1m, Silent 18E – 70 dB(A) @1m.

◆ NEW Economy Versions: Open 13ES, Open 15ES = Manual Stop, Manual Condensate Drains, 1 Filling Hose
 Silent 15ES, Silent 18ES = Without digital Controller, With Auto Stop, Auto Condensate Drains, 2 Filling

Combined Breathing Air Filter • Ø 80x560 • Ø 110x495

Combined Breathing Air Filter • Ø 80x560 • Ø 110x495

Design Specifications

Standard Equipment

  • Star/Delta starter system
  • Advanced digital controller providing operation (running hrs, filling pressure, operating temperature), control (start/stop/reset/menu button) & service (service hrs-alarm, records of the last 15 malfunctions) data
  • Oil pump lubrication
  • Start/Stop switch
  • Motor thermal overload protection
  • Automatic stop system
  • Automatic start system
  • Automatic condensate drains with manual backups
    + Condensate collecting tank.
  • 24V secondary voltage providing safety during routine operation
  • Emergency Stop button
  • Micronic air inlet filter
  • Pressure maintaining & non return valve for extended filtration
  • Condensate Separator after 2nd Stage
  • Combined BA Filter including Coalescing Pre-filter (0.5 mg/m3 oil residual) and BA cartridge (AC/MS + HP option), with the supply of absolutely clean air exceeding by far the requirements of EN12021
  • Safety Bleed valve in case of BA Cartridge absence
  • Large Stainless Steel Intercoolers – Aftercooler
    Safety Valves in all stages
  • Interstage pressure sensors providing emergency shutdown in case of overpressure
  • 2 Kevlar filling hoses (1.2m each) with stainless steel fittings and DIN/INT’L connectors
  • Lever operated on/off filling valves with automatic ventilation
  • Soundproof insulation ensuring very low noise level
  • Dual pressure filling facility, allowing 225/330 bar simultaneous filling via pressure regulator
  • Remote Start/Stop –
  • Remote Load/Unload
  • Interstage/Final stage
  • Manometers
  • Electric hourmeter
  • Vibration hourmeter/service timer (Running hours, BA filter/oil service hours)
  • High Temperature monitoring / alarm / shutdown
  • Low Oil level monitoring / alarm / shutdown
  • Carbon Monoxide (CO) monitoring / alarm / shutdown system
  • Hydrogen Sulfide (H2S) monitoring / alarm / shutdown system
  • Humidity (H2O) monitoring / alarm / shutdown system
  • Carbon Dioxide (CO2) monitoring / alarm / shutdown system
  • OIL-VOC monitoring / alarm / shutdown system
  • Final stage Condensate Separator
  • Special Voltage/Frequency: 230V/50Hz-60Hz *
    3x230V/60Hz  * 460-480V/60Hz
  • Voltage failure and Phase Rotation Safety device
    Automatic belt tensioning system
  • 1.5m air inlet hose with particle strainer

Optional Equipment



typhoon_electric

Open/Classic 15E, 18E

Silent 15E,18E

Twin15,18E

Star/Delta starter system

1

1

Advanced digital controller providing operation (running hrs, filling pressure, operating temperature), control (start/stop/reset/menu button) & service (service hrs-alarm, records of the last 15 malfunctions) data

Oil pump lubrication

Start/Stop switch

Motor thermal overload protection

Automatic stop system

Automatic start system

Automatic condensate drains with manual backups
+ Condensate collecting tank.

24V secondary voltage providing safety during routine operation

Emergency Stop button

Micronic air inlet filter

Pressure maintaining & non return valve for extended filtration

Condensate Separator after 2nd Stage

Combined BA Filter including Coalescing Pre-filter (0.5 mg/m3 oil residual) and BA cartridge (AC/MS + HP option), with the supply of absolutely clean air exceeding by far the requirements of EN12021

2

2

2

Safety Bleed valve in case of BA Cartridge absence

Large Stainless Steel Intercoolers – Aftercooler

Safety Valves in all stages

Interstage pressure sensors providing emergency shutdown in case of overpressure

2 Kevlar filling hoses (1.2m each) with stainless steel fittings and DIN/INT’L connectors

Lever operated on/off filling valves with automatic ventilation

Soundproof insulation ensuring very low noise level

Dual pressure filling facility, allowing 225/330 bar simultaneous filling via pressure regulator

Remote Start/Stop – Remote Load/Unload

Interstage/Final stage Manometers

Electric hourmeter

Vibration hourmeter/service timer (Running hours, BA filter/oil service hours)

High Temperature monitoring / alarm / shutdown

Low Oil level monitoring / alarm / shutdown

Carbon Monoxide (CO) monitoring / alarm / shutdown system

Hydrogen Sulfide (H2S) monitoring / alarm / shutdown system

Humidity (H2O) monitoring / alarm / shutdown system

Carbon Dioxide (CO2) monitoring / alarm / shutdown system

OIL-VOC monitoring / alarm / shutdown system

Final stage Condensate Separator

Special Voltage/Frequency: 230V/50Hz-60Hz *
3x230V/60Hz * 460-480V/60Hz

Voltage failure and Phase Rotation Safety device

Automatic belt tensioning system

1.5m air inlet hose with particle strainer

1* Standard on Typhoon 18 models – option on Typhoon 15 models.
2* Ø80 x 560 Typhoon 15 models, Ø110 x 495 Typhoon 18 models (option for Typhoon 15 models). Ø110 x 725 Typhoon Twin 15E & 18E.
